东莞市高必盛压铸智能装备有限公司、专业研发定制和生产锌合金压铸机配套自动化设备、包括锌合金压铸伺服高速取件机、压铸取件机械手、压铸下料机器人、协作机械手、输送机、输送带、其他输送设备、和压铸水口分离设备、超声波自动去水口机、全自动水口分离机等等智能机械。

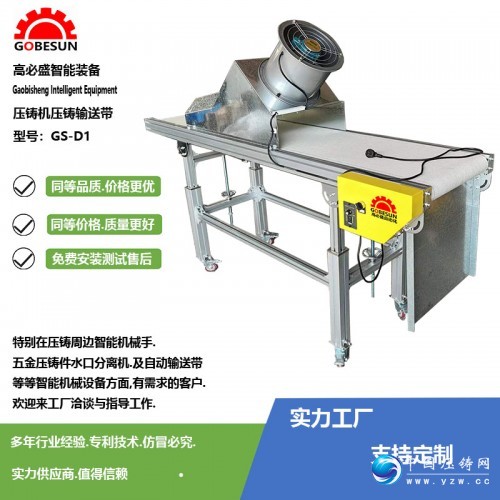

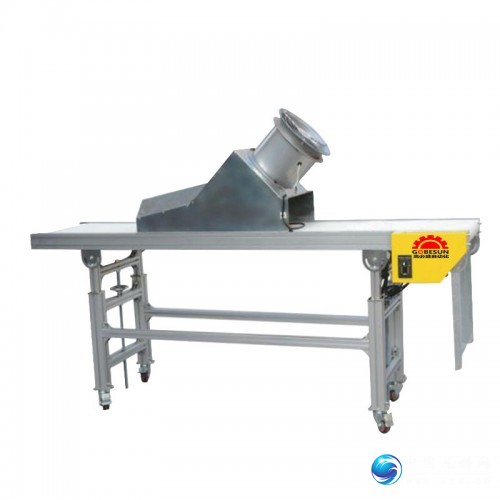

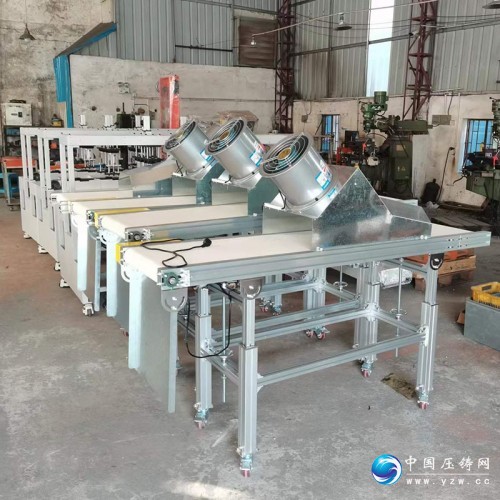

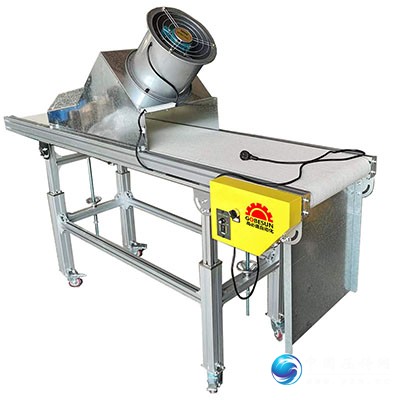

GS-D1 坯件输送带输送机的技术参数与特性
Blank Conveyor Belt
|
型号Model No. |
GS-D1 |
|
适应压铸机Applicable Die Casting Machine |
38-400T |
|
电压Voltage |
AC220V |
|
频率Frequency |
50Hz |
|
最 大的电流Max. Current |
0.4A |
|
最 大功率Max. Power |
90W |
|
安装方式Installation Method |
立地式standing type |
|
机械重量Machine Weight |
30-100KGS and custom weight |
|
外观尺寸External Dimension |
Custom Dimension |
|
转速 |
10-90 可调 |
|
万向轮 |
4个移动式万向轮带刹车 |
这些输送带机械设备，主要是作为压铸机械手取件之后，输送坯件（风冷协助冷却）到压铸水口分离机，便于实现取件、输送、压铸渣包分离装箱一条龙生产。
广泛用于生产工厂和企业，通讯产品、电子产品、玩具、化妆品、家居、箱包、医疗、航空、汽摩、新能源等等锌合金压铸的生产工厂、生产企业。
Technical parameters and characteristics of GS-D1 billet conveyor belt conveyor
Blank Conveyor Belt
Model No. GS-D1
Applicable Die Casting Machine 38-400T
Voltage AC220V、Frequency 50Hz
Maximum current Current 0.4A、Maximum power Power 90W
Installation Method Stand Type
Machine Weight 30-100KGS and custom weight
External Dimension Custom Dimension
Speed adjustable from 10 to 90
These conveyor belt mechanical equipment are mainly used as die-casting robots to transport the blank (air-cooled to assist in cooling) to the die-casting water inlet separator, facilitating the one-stop production of parts extraction, transportation, and die-casting slag bag separation and boxing.
Widely used in production factories and enterprises, including communication products, electronic products, toys, cosmetics, home furnishings, luggage, medical, aviation, automotive, new energy, and other zinc alloy die-casting production factories and enterprises.
东莞市高必盛压铸智能装备有限公司、售后服务实行终身服务、电机保修3年、其他配件终身提供。
包装采用拉伸膜包裹及定制木箱包装。

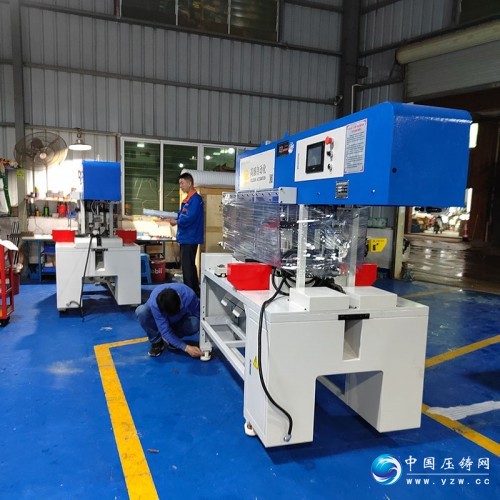

压铸机械自动化配套产品发货装运展示
